Juniper ACX1100 Router
ACX Series Universal Access Routers are a family of next-generation access routers that address the new network imperatives with up to three times the total throughput of competitive solutions. These routers provide a seamless, end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.
The ACX1100 is a 1U fanless router with eight copper GbE ports and four copper/fiber GbE ports. It is ideal for enterprise and service provider cabinet and tower deployments.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX1100 variants, parts & licenses.
ACX Series Universal Access Routers are a family of next-generation access routers that address the new network imperatives with up to three times the total throughput of competitive solutions. These routers provide a seamless, end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.
The ACX1100 is a 1U fanless router with eight copper GbE ports and four copper/fiber GbE ports. It is ideal for enterprise and service provider cabinet and tower deployments.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX1100 variants, parts & licenses.
ACX Series Universal Access Routers are a family of next-generation access routers that address the new network imperatives with up to three times the total throughput of competitive solutions. These routers provide a seamless, end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.
The ACX1100 is a 1U fanless router with eight copper GbE ports and four copper/fiber GbE ports. It is ideal for enterprise and service provider cabinet and tower deployments.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX1100 variants, parts & licenses.
Product Information

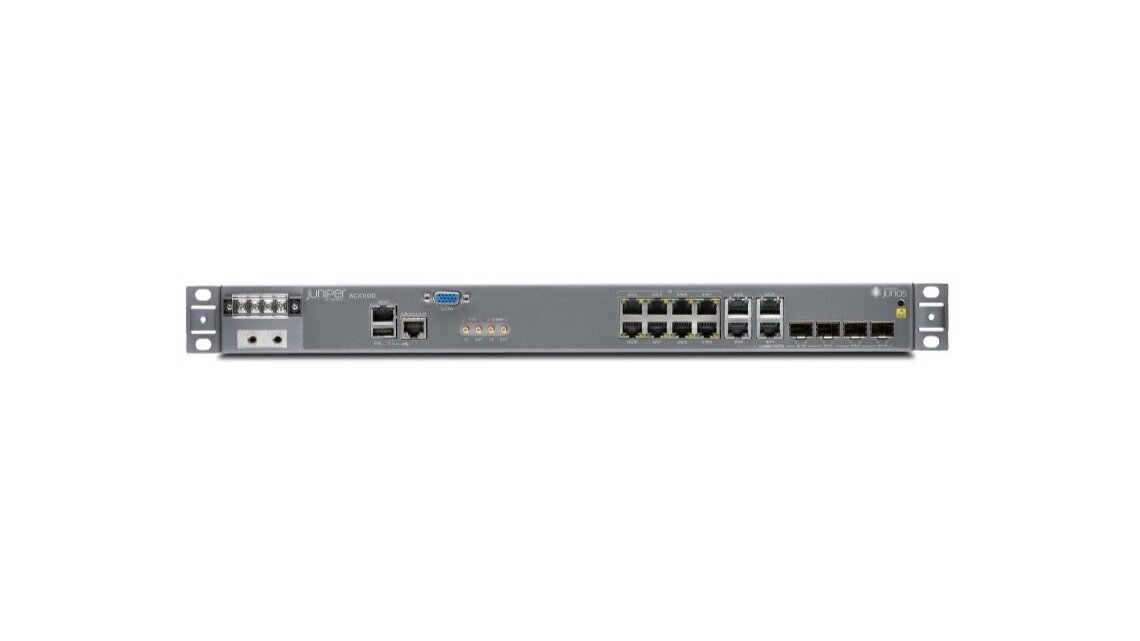

The ACX1100 Universal Metro Router is a compact, 1U, environmentally hardened Ethernet-only access router. It has a fixed configuration of eight copper GbE 10/100/1000-Mbps interfaces, and four GbE copper/fiber combination ports. Its 60-Gbps performance, programmability, and fanless passive cooling system makes it ideal for external cabinet or tower installations.
ACX Universal Metro Routers enable network operators to rapidly deploy new, high-bandwidth services cost-effectively. The ACX1100's compact 17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm) form factor conforms to ETSI 300 specifications and eases deployment in a service provider or enterprise cabinet where rack space and cooling are limited.
‣ ACX1100: The compact, 1 U, environmentally hardened ACX1100 is an Ethernet-only access router with a fixed configuration of eight copper GbE 10/100/1000 Mbps interfaces, and four GbE copper/fiber combination ports. It provides 60 Gbps performance, programmability, and a fanless passive cooling system that makes it ideal for external cabinet or tower installations.
Specs
‣ Dimensions (W x H x D): 17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
‣ Weight(lb/kg) fully configured:
— ACX1000: 6.5 lb (2.94 kg)
— ACX1100: 7.8 lb (3.54 kg)
‣ Power (DC): -48 V nominal or -60 V telco nominal or +24 VDC nominal
‣ Power (AC): 90 to 240 VAC for ACX2100- AC only
‣ Maximum power draw: 50 W (ACX1000); 35 W (ACX1100-AC); 40 W (ACX1100-DC)
‣ Operating temperature: -40° to 149° F (-40° to 65° C)
‣ Humidity: 95% RH noncondensing
/
Variant Product Details
Lightwire Systems offers the following ACX1100 variant options:
ACX1100-AC
ACX1100 unit, 8xGbE copper and 4xGbE combination (copper or SFP), 1 U, ETSI 300, redundant AC power, temperature hardened, passively cooled, Junos OS (optics sold separately)
Part Numbers & Descriptions
Lightwire Systems offers the following ACX1100 parts & licenses:
Contact us for specific parts and license requests.
