Ruckus ICX 7150 Switch

The Ruckus ICX 7150 family of switches are available in three formats: Ruckus ICX 7150 Switches, Ruckus ICX 7150 Z-Series Switches, and Ruckus ICX 7150 Compact Switches.

Stacking Across the ICX 7150 Family
Ruckus stacking technology2 makes it possible to stack up to twelve Ruckus ICX 7150 switches into a single logical switch. This allows the Ruckus ICX 7150 to deliver a class-leading 480 Gbps of aggregated stacking bandwidth and offer simple and robust expandability for future growth. Stacking is supported across the ICX 7150 family and all ICX 7150 models including the ICX 7150 compact switch and the ICX 7150-48ZP can be mixed within the same stack. This stacked switch has only a single IP address that simplifies management and offers transparent forwarding across up to 600x1 GbE ports or up to 192x2.5 GbE ports, and up to 96x10 GbE ports. When new switches join the stack, they automatically inherit the stack's existing configuration file, enabling a plug-and-play network expansion.

Because the ICX 7150-48ZP switch has twice as many uplink ports, when it is added to a stack of other ICX 7150 switch models, the effective bandwidth of all the switches is doubled. By designing the stack this way, all four of the 10GbE ports on the ICX 7150 switches can be used for stacking (rather than having to split the four ports between stacking and uplinks), and leveraging four of the 10GbE ports on the ICX 7150-48ZP for stacking and the other four 10GbE ports can be used for uplinks.

Enterprise-Class Availability
The Ruckus ICX 7150 Switches help deliver continuous availability to optimize the user experience. Ruckus stacking technology provides high availability by performing real-time state synchronization across the stack and transferring switch management control from the master stack controller to the standby controller if the master stack controller experiences a failure. When hot-inserting or hot-removing a stack member to increase capacity or perform service upgrade, traffic flows will not experience interruption.

In addition to stack-level high availability, Ruckus ICX 7150 Switches also support stack level ISSU (In Service Software Upgrade), a unique capability that allows the user to perform software upgrades to a Ruckus ICX 7150 stack without service interruption. Taking highavailability and reliability even further, the Ruckus ICX 7150 Z-Series switch offers redundant hot swappable load sharing power supplies and up to 2 hot swappable fans.

Silent Operation
The Ruckus ICX 7150-C12P compact switch, along with the Ruckus ICX 7150-24 and the ICX 7150-48 switches, feature a fanless design that enables it to operate silently. The Ruckus ICX 7150-24P and the ICX 7150-48P offer a “silent mode” configuration option, enabling these switches to operate with the fan disabled while providing a PoE budget of 150 watts. This Ruckusexclusive feature enables users in hospitality, education, healthcare, and retail industries to deploy these switches outside of the wiring closet without disrupting the work environment.

Multigigabit Ethernet Support
The Ruckus ICX 7150-48ZP Switch raises the bar for entry-level switches even further with 16x IEEE 802.3bz compliant 2.5 GbE ports, up to 8x10 GbE uplink ports, dual redundant load sharing power supplies and class-leading stacking density with up to 12 switches per stack. It stacks with all other members of the ICX 7150 family allowing organizations to buy what they need now and easily scale as the need for Multigigabit support emerges. It is designed to work seamlessly with Ruckus Networks access points to deliver unified wired and wireless network access.

‣    Product Line: Ruckus ICX Series

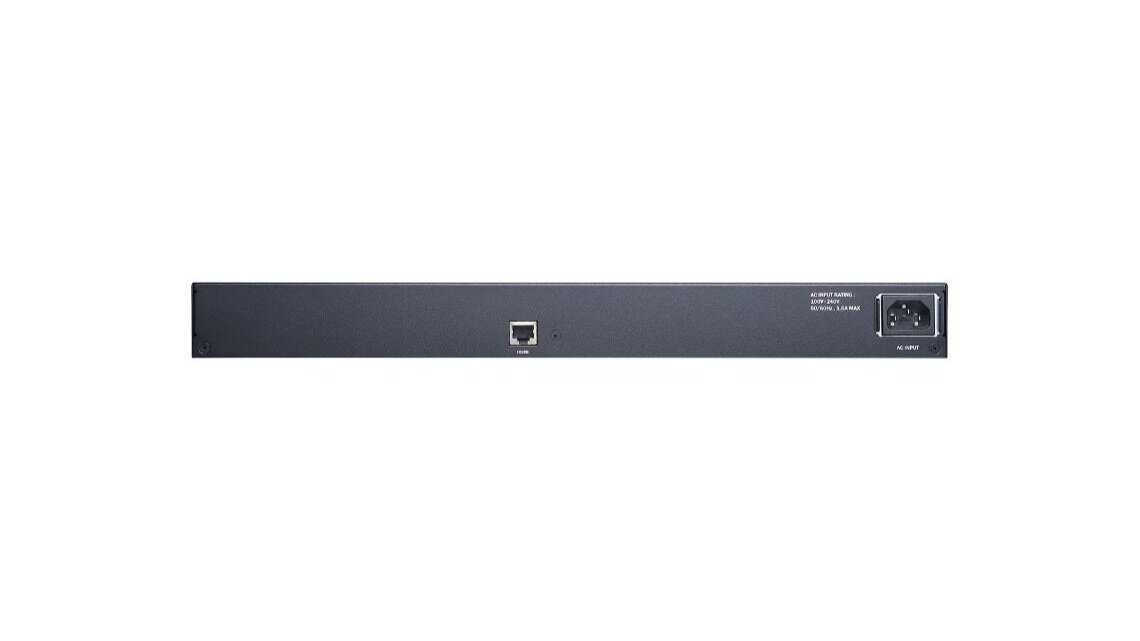

‣    Spec Model: 7150-48

‣    48 x 10/100/1000 + 2 x 10/100/1000 (uplink) + 4 x Gigabit SFP

‣    Performance: Forwarding performance: 134 Mpps; Stacking bandwidth: 320 Gbps;       Switching capacity: 180 Gbps

‣    Capacity: ARP entries: 2048; QoS hardware queues: 8; Spanning Tree Protocol
      instances: 254; Virtual interfaces (VLANs): 4095

‣    Networking:
      — Form Factor : Rack-mountable
      — Stackable : Stackable
      — Max Units In A Stack : 8
      — Ports Qty : 48
      — Advanced Switching : Layer 3
      — Routing Protocol : ECMP, OSPF, OSPFv2, OSPFv3, PIM-SM, PIM-SSM, Policy-based
          routing (PBR), RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRP,
          VRRPE, VRRPv3
      — MAC Address Table Size : 16384 entries
      — Jumbo Frame Support : 9216 bytes
      — Manageable : Yes
      — Remote Management Protocol : CLI, HTTP, HTTPS, SCP, SNMP 3, Telnet, TFTP

‣    Encryption Algorithm: AES

‣    Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+

‣    Power Device: Type: Internal power supply; Installed Qty: 1; Max Supported Qty: 1;
      Power Provided: 65 watt; Nominal Voltage: AC 120/230 V; Frequency
      Required : 50/60 hertz

‣    Dimensions: 17.3” W x 14.6” D x 1.7” H - 1U

‣    Weight: 10.67 lbs - 1U

‣    Features: 802.1x authentication, Access Control List (ACL) support, Class of Service (CoS), DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, DoS attack prevention, Dynamic ARP Inspection (DAI), Fanless, Flow control, IPv4 support, IPv6 support, Network Timing Protocol (NTP), OpenFlow support, Quality of Service (QoS), sFlow, Strict Priority (SP), Tagged VLAN, Trusted Platform Module (TPM), Type of Service (ToS), Virtual Cable Test (VCT) technology, Weighted Round Robin (WRR) queuing
