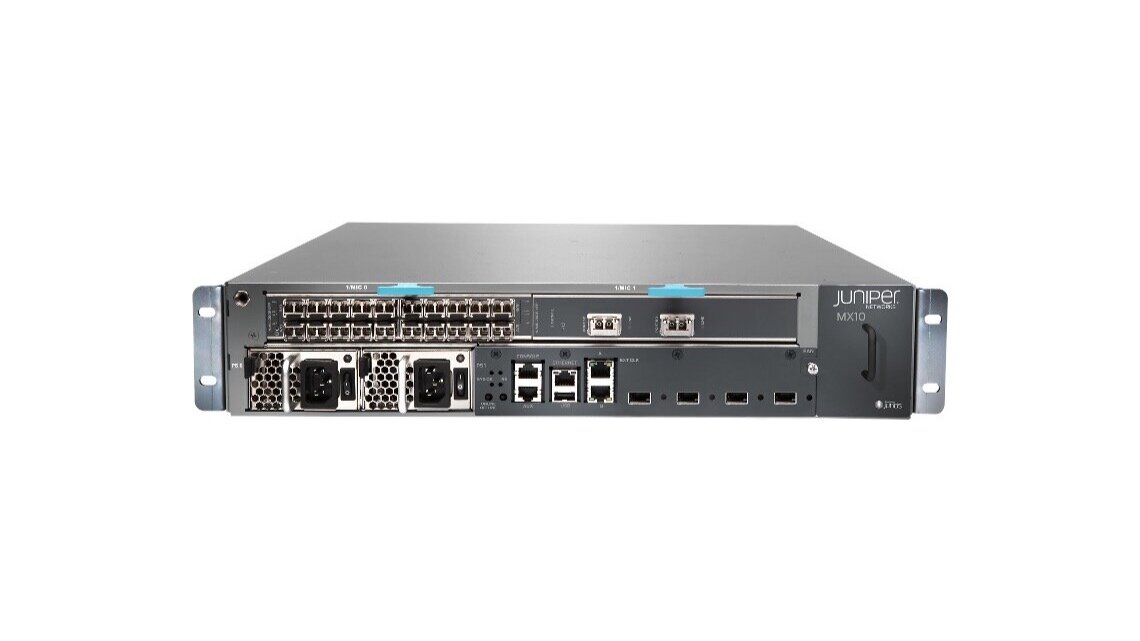

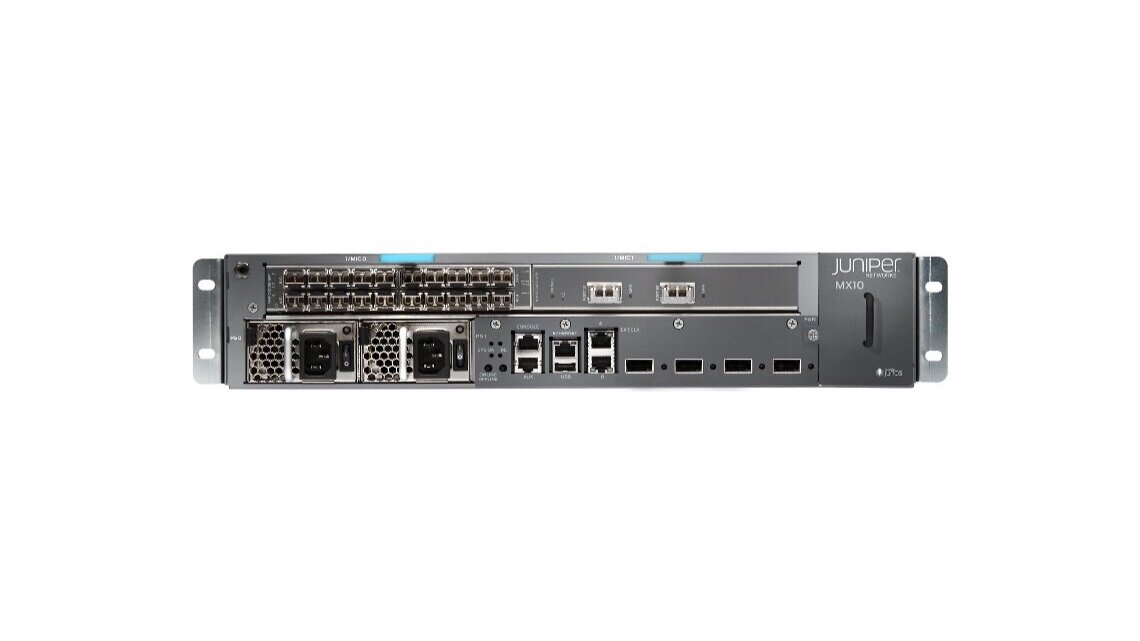

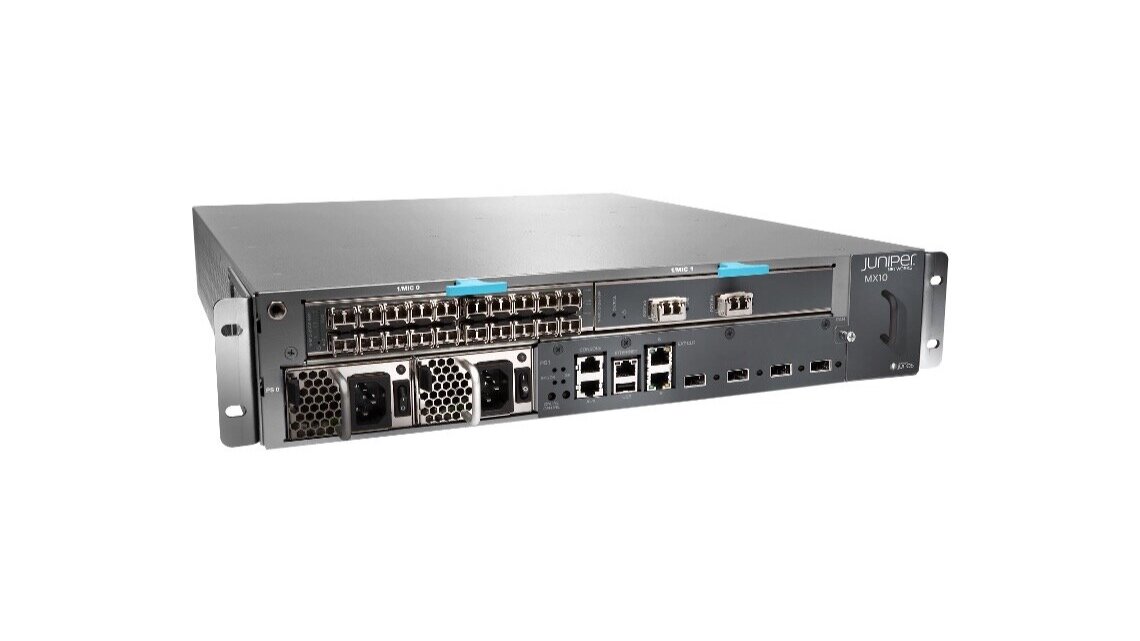

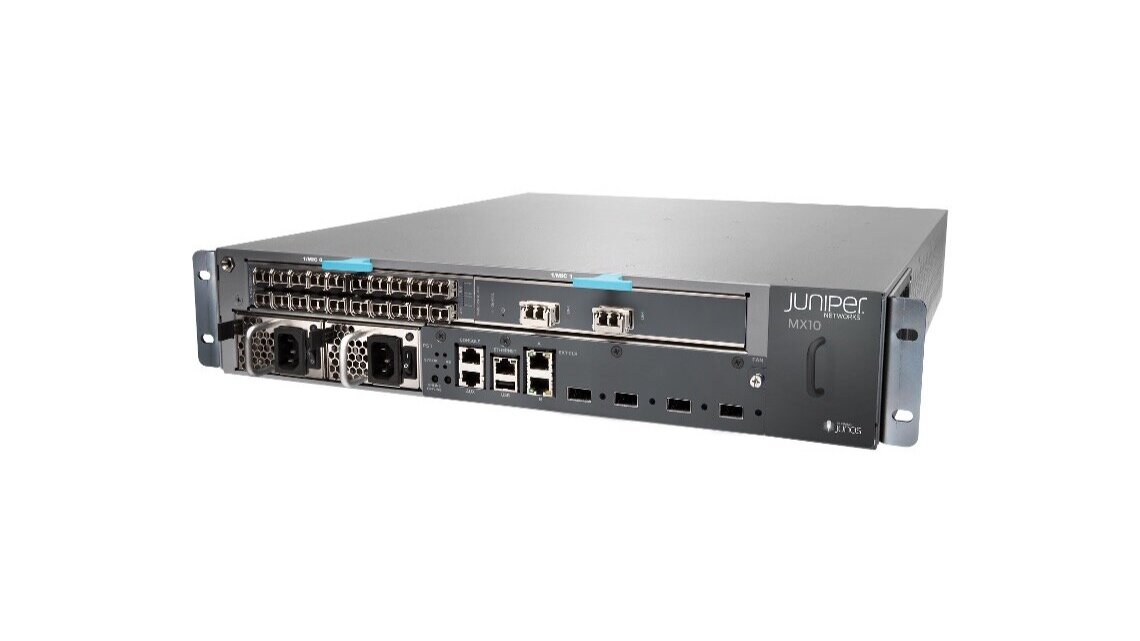

Juniper MX10 Router
The compact, agile, and full-featured MX10 Universal Routing Platform is ideally suited for enterprise and service provider applications, and is optimized for space- and power-constrained facilities. It is equipped with Modular Interface Card (MIC) slots that permit flexible network connectivity, and a MS-MIC slot that optionally provides dedicated service support.
The MX10 is also software upgradeable to deliver higher performance, port density, and additional services. This investment protecting approach enables customers to increase bandwidth, subscriber, and services scale while minimizing upfront costs.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX10 routers and MX10 parts & licenses.
The compact, agile, and full-featured MX10 Universal Routing Platform is ideally suited for enterprise and service provider applications, and is optimized for space- and power-constrained facilities. It is equipped with Modular Interface Card (MIC) slots that permit flexible network connectivity, and a MS-MIC slot that optionally provides dedicated service support.
The MX10 is also software upgradeable to deliver higher performance, port density, and additional services. This investment protecting approach enables customers to increase bandwidth, subscriber, and services scale while minimizing upfront costs.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX10 routers and MX10 parts & licenses.
Product Information
MX10 routers serve as the baseline for the MX Series. The MX10 is best suited for enterprise and service provider networking applications. It’s small size makes it ideal for facilities with limited hardware space. Although the MX10 is limited in terms of port configurations and density, it’s a more cost-effective solution than other MX Series routers that have similar specifications.
The MX10 is also software upgradeable to deliver higher performance, port density, and additional services.
Long-Term Investment Protection
Increase scale through 80 Gbps and add services via simple software upgrade that provides nondisruptive platform evolution and long-term investment protection.
SDN-Ready
Seamless integration with SDN controllers like Juniper Networks Contrail enables elastic service delivery, simplified operations, and service differentiation.
Service Agility
Ability to incorporate services inline and via MS-MIC provides new revenue opportunities in business and residential markets.
Compact Design
At 2 U, the full-featured MX10 is an ideal choice for space- and power-constrained facilities.
Specs
‣ System capacity: 40 Gbps
‣ Switch fabric capacity per slot: N/A
‣ DPCs and/or MPCs per chassis: Two MIC slots; and four 10-Gigabit Ethernet (10GbE)
interfaces. 3rd MIC slot on the back for Multisevices MIC only.
‣ Chassis per rack: 24
‣ Dimensions (W x H x D): Chassis: 17.5 x 3.5 x 23.5 in (44.5 x 8.9 x 59.6 cm)
‣ Maximum weight: 30 lb/13.7 kg
‣ Mounting: Front or center
‣ Power options: AC/DC: -40 to -72 VDC 100-240 VAC
‣ Operating temperature: 32° to 115° F (0° to 46° C) at sea level
‣ Humidity: 5 to 90 percent non-condensing
‣ Altitude: No performance degradation to 13,000 ft / 4,000 m
/
Variant Product Details
Lightwire Systems offers the following MX10 variants:
MX10-BASE-T
MX10 Chassis with Timing Support - Includes dual power supplies, MIC-3D-20GE-SFP-E, 1 empty MIC slot, S-MX80-ADV-R, S-MX80-Q & S-ACCT-JFLOW-IN-5G licenses. Power-supply cable to be ordered separately
MX10-T-AC
MX10 AC Chassis with Timing Support - Includes Dual Power Supplies, MIC-3D-20GE-SFP, 1 Empty MIC Slot, JUNOS, S-MX80-ADV-R, S-MX80-Q& S-ACCT-JFLOW-IN Licenses, Power Supply Cable to be ordered separately, Mid-Rangius.
MX10-T-DC
MX10 DC Chassis with Timing Support - Includes Dual Power Supplies, MIC-3D-20GE-SFP, 1 Empty MIC slot, JUNOS, S-MX80-ADV-R, S-MX80-Q& S-ACCT-JFLOW-IN licenses, Power Supply Cable to be ordered separately, Mid-Rangius.
Part Numbers & Descriptions
Lightwire Systems offers the following MX10 parts & licenses:
MX10-T-AC
MX10 AC chassis with timing support - includes dual power supplies, MIC-3D-20GE-SFP, 1 empty MIC slot, Junos, S-MX80-ADV-R, S-MX80-Q & S-ACCT-JFLOW-IN-5G licenses. Power-supply cable to be ordered separately
MX10-T-DC
MX10 DC chassis with timing support - includes dual power supplies, MIC-3D-20GE-SFP, 1 empty MIC slot, Junos, S-MX80-ADV-R, S-MX80-Q & S-ACCT-JFLOW-IN-5G licenses. Power-supply cable to be ordered separately
CHAS-MX10-T-S
MX10 spare chassis with timing support
MX-10-80-UPG
Software upgrade for MX10 to MX80
FANTRAY-MX80-S
Fan Tray for MX80, Spare, MX80
FLTR-KIT-MX80-S
Filter Kit for MX80, Spare, MX80
MX80-SEPTUM-S
MX80 Septum for use with 1/2 height MICs, Spare
PWR-BLANK-MX80
MX80 Power Blank Cover, Spare, MX80
PWR-MX80-AC-S
MX80 AC Power Supply
PWR-MX80-DC-S
MX80 DC Power Supply
